Web Application Firewall (WAF)

The OWASP Web Application Firewall (WAF) is a powerful security layer that protects your web applications from various types of attacks. It can be enabled at the ingress level using OWASP Core Rule Set (CRS) rules.

What is OWASP WAF?

The OWASP WAF is based on the ModSecurity engine and the OWASP Core Rule Set (CRS), which is a set of generic attack detection rules for use with ModSecurity or compatible web application firewalls. The CRS aims to protect web applications from a wide range of attacks, including the OWASP Top Ten, while minimizing false positives.

We are using version 4.15.0. You can view the rules from the official repository on GitHub.

Key Benefits

• Comprehensive Protection: Covers the OWASP Top 10 vulnerabilities.
• Real-time Monitoring: Detects and blocks malicious requests in real-time.
• Attack Prevention: Blocks common attack vectors like SQL injection, XSS, and file inclusion attacks.

Enabling WAF

To enable the WAF at the ingress level:

1. Configure the OWASP rules as shown in the following image o the Settings tab.



2. Make a new deployment clicking on Apply changes

Enabled Rule Sets

The following table lists the enabled OWASP Core Rule Set (CRS) version 4.15.0 rule sets (grouped by configuration files) with their descriptions:

Rule Set ID	Rule File	Description
900	REQUEST-900-EXCLUSION-RULES-BEFORE-CRS.conf	Exclusion rules that should be processed before the main CRS rules
901	REQUEST-901-INITIALIZATION.conf	Initialization rules that set up the basic CRS environment
905	REQUEST-905-COMMON-EXCEPTIONS.conf	Common exception rules for legitimate traffic patterns
911	REQUEST-911-METHOD-ENFORCEMENT.conf	Rules to enforce allowed HTTP methods and block unauthorized ones
913	REQUEST-913-SCANNER-DETECTION.conf	Rules to detect and block automated scanning tools and bots
920	REQUEST-920-PROTOCOL-ENFORCEMENT.conf	Protocol enforcement rules to ensure requests follow HTTP standards
921	REQUEST-921-PROTOCOL-ATTACK.conf	Detection rules for protocol-based attacks
922	REQUEST-922-MULTIPART-ATTACK.conf	Rules to detect attacks in multipart form data
930	REQUEST-930-APPLICATION-ATTACK-LFI.conf	Local File Inclusion (LFI) attack detection rules
931	REQUEST-931-APPLICATION-ATTACK-RFI.conf	Remote File Inclusion (RFI) attack detection rules
932	REQUEST-932-APPLICATION-ATTACK-RCE.conf	Remote Code Execution (RCE) attack detection rules
933	REQUEST-933-APPLICATION-ATTACK-PHP.conf	PHP-specific attack detection rules
934	REQUEST-934-APPLICATION-ATTACK-GENERIC.conf	Generic application attack detection rules
941	REQUEST-941-APPLICATION-ATTACK-XSS.conf	Cross-Site Scripting (XSS) attack detection rules
942	REQUEST-942-APPLICATION-ATTACK-SQLI.conf	SQL Injection attack detection rules
943	REQUEST-943-APPLICATION-ATTACK-SESSION-FIXATION.conf	Session fixation attack detection rules
944	REQUEST-944-APPLICATION-ATTACK-JAVA.conf	Java-specific attack detection rules
949	REQUEST-949-BLOCKING-EVALUATION.conf	Rules for evaluating and determining blocking actions
950	RESPONSE-950-DATA-LEAKAGES.conf	Rules to detect data leakage in HTTP responses
951	RESPONSE-951-DATA-LEAKAGES-SQL.conf	SQL-specific data leakage detection rules
952	RESPONSE-952-DATA-LEAKAGES-JAVA.conf	Java-specific data leakage detection rules
953	RESPONSE-953-DATA-LEAKAGES-PHP.conf	PHP-specific data leakage detection rules
954	RESPONSE-954-DATA-LEAKAGES-IIS.conf	IIS-specific data leakage detection rules
955	RESPONSE-955-WEB-SHELLS.conf	Web shells detection rules
959	RESPONSE-959-BLOCKING-EVALUATION.conf	Response-based blocking evaluation rules
980	RESPONSE-980-CORRELATION.conf	Rules for correlating request and response data
999	RESPONSE-999-EXCLUSION-RULES-AFTER-CRS.conf	Exclusion rules that should be processed after the main CRS rules

Viewing WAF Logs

To view the WAF logs:

1. Go to the Logs tab.

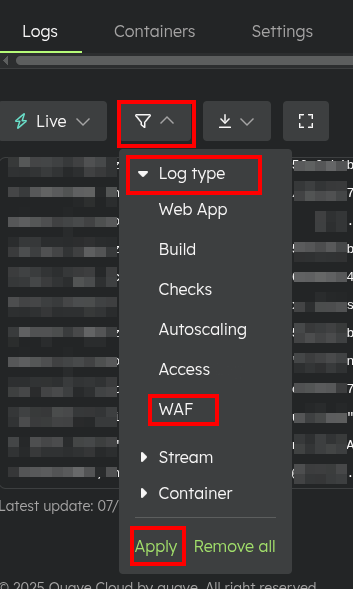

2. In the filter, select Log Type -> WAF and click Apply.

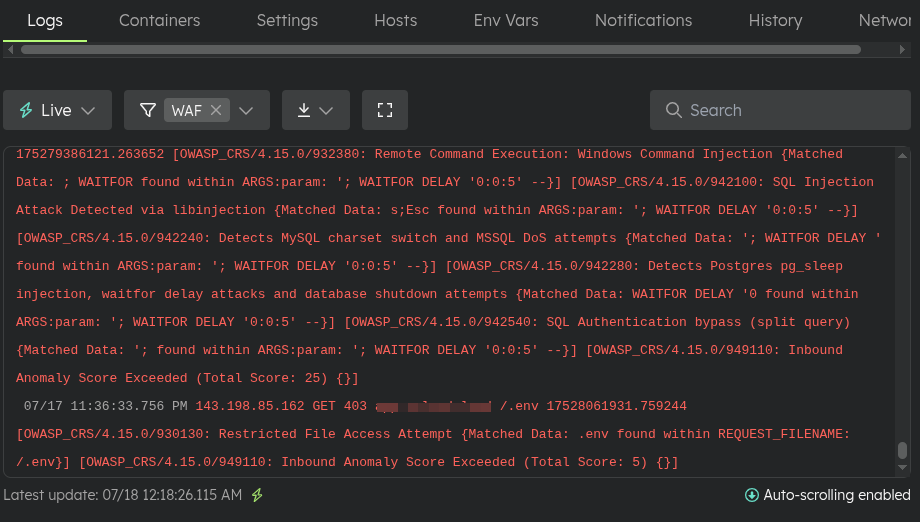

Now you will see WAF blocking events.

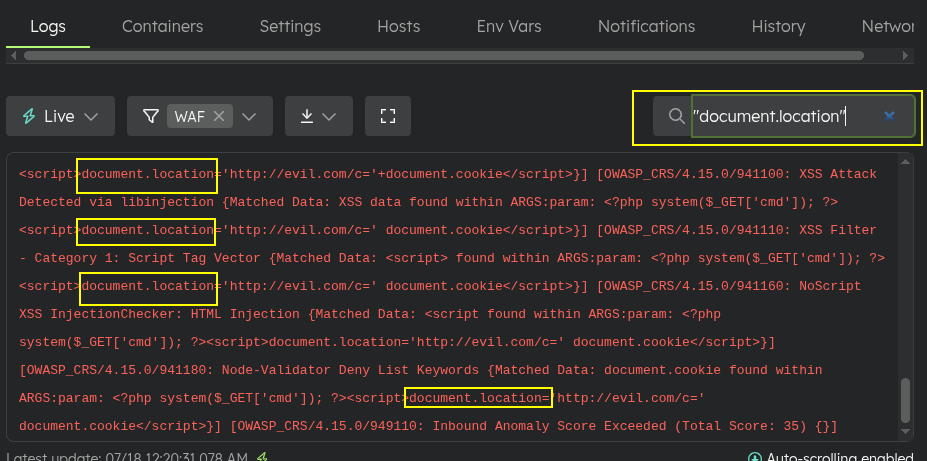

3. You can filter for specific content using the search function.



Downloading WAF Logs

To download the logs:

1. Filter the desired content as demonstrated in the Viewing WAF Logs section.

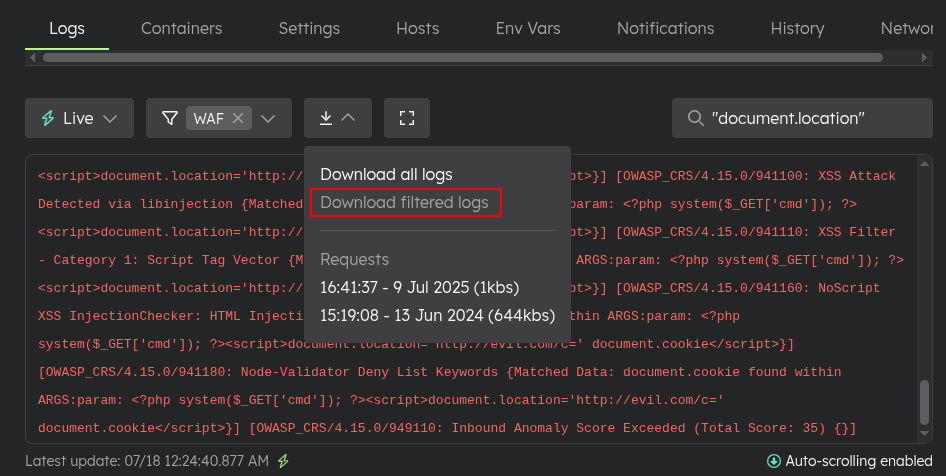

2. Select the Download filtered logs option.

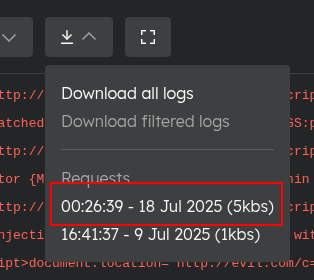

A file with the log content will be generated and will appear in the list to be downloaded.

The log file will have the following field structure:

Field	Description
dateTime	The timestamp of the WAF event.
clientIp	The IP address of the client making the request.
requestMethod	The HTTP method used (e.g., GET, POST).
responseHttpCode	The HTTP status code returned (e.g., 403 for blocked).
requestHost	The host header value.
requestUri	The requested URL path.
uniqueId	A unique identifier for the request.
messages	Details of the triggered rules and reasons for blocking.

Retention Period

Logs are retained for a period of 20 days. After this period, older logs are automatically deleted from the system. Make sure to download any important logs that you might need for future reference before they expire.
